REAR STABILIZER REMOVAL/INSTALLATION [WL-C, WE-C (Thailand Specs.)]

id021400800523

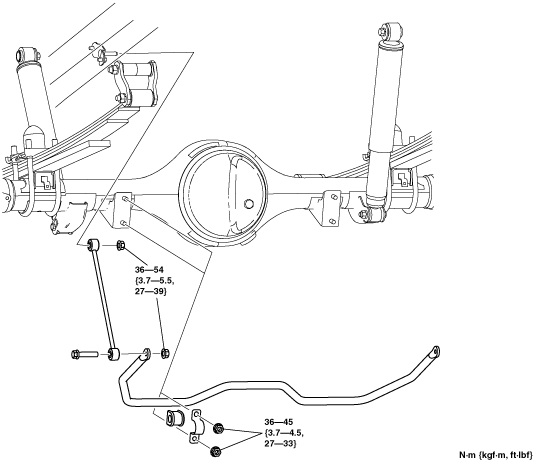

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, tighten the control link installation bolt completely on the ground.

dbg214zwb003

1	Rear stabilizer component (See Rear Stabilizer Component Installation Note.)
2	Stabilizer control link (See Stabilizer Control Link Installation Note.)
3	Stabilizer bracket
4	Bushing (See Bushing Installation Note.)
5	Rear stabilizer

Bushing Installation Note

1.  Install the bushings aligned with the painting part.

dbg214zwb004

Stabilizer Control Link Installation Note

1.  Install the stabilizer control link with the painted area pointing towards the under side and inside of the vehicle.

Rear Stabilizer Component Installation Note

1.  Temporarily install the rear stabilizer component.

2.  Tighten the stabilizer control link nut.

3.  Tighten the stabilizer bracket nut.
