REAR SHOCK ABSORBER AND LEAF SPRING REMOVAL/INSTALLATION [4x2 (HIGH CLEARANCE MODEL), 4x4]

id0214008040a5

Warning

• Use safety stands for support of the left and right axle casings, and while supporting the differential casing with a jack, raise or lower the jack as necessary.

1. Support the frame with safety stands and place a jack under the differential casing.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. After installation, tighten the bolt (leaf spring front side) completely on the ground.

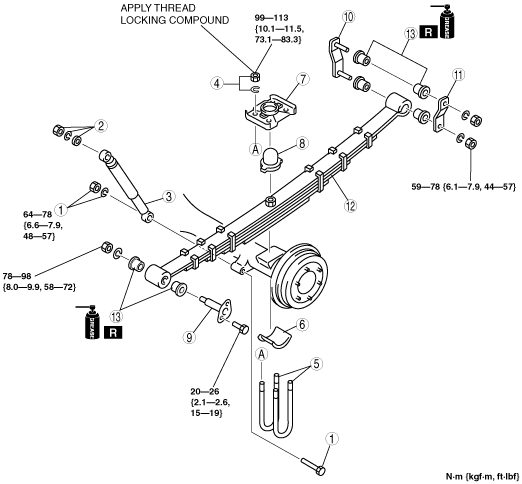

absggw00001693

1

Bolt, washer and nut

2

Nut, washer, and retainer

3

Shock absorber

4

Nut and washer

5

U-bolt

6

Set plate

7

Spring clamp

8

Bound stopper

9

Bolt

10

Shackle pin

11

Shackle plate

12

Leaf spring component

13

Leaf spring bushing

(See REAR SHOCK ABSORBER AND LEAF SPRING REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)].)

1	Bolt, washer and nut
2	Nut, washer, and retainer
3	Shock absorber
4	Nut and washer
5	U-bolt
6	Set plate
7	Spring clamp
8	Bound stopper
9	Bolt
10	Shackle pin
11	Shackle plate
12	Leaf spring component
13	Leaf spring bushing (See REAR SHOCK ABSORBER AND LEAF SPRING REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)].)
