DRIVELINE/AXLE SPECIFICATIONS [MT]

id030000100220

Item				Specification
Engine				F2		G6
Transmission type				M15M-D	R15M-D	R15M-D	R15MX-D
Vehicle type				4×2	4×2	4×2	4×4
Front axle
Bearing type				Taper roller bearing
Rear axle
Bearing type				Taper roller bearing
Support type				Semi-floating
Casing				Banjo type
Length			(mm {in})	739 {29.1}
Diameter			(mm {in})	35.0 {1.4}
Rear differential
Reduction gear				Hypoid gear
Differential gear				Straight bevel gear
Ring gear size			(Inches)	8.0
Final gear ratio				4.444		3.727	4.444
Differential oil	Type	Grade		Standard differential: API service GL-5 LSD: API service GL-6
		Viscosity		SAE 90
		Capacity (approx. quantity)		1.40 {1.48, 1.23}			1.85 {1.96, 1.63}
		(L {US qt, lmp qt})
Front differential
Reduction gear				–			Hypoid gear
Differential gear				–			Straight bevel gear
Ring gear size			(Inches)	–			7.3
Final gear ratio				–			4.444
Differential oil	Type	Grade		–			API service GL-5
		Viscosity		–			Above -18 °C {0 °F}: SAE90 Below -18 °C {0 °F}: SAE80
		Capacity (approx. quantity)		–			1.5 {1.6, 1.3}
		(L {US qt, lmp qt})
Front drive shaft
Joint type		Wheel side		–			Bell joint
		Differential side		–			Double offset joint
Shaft diameter			(mm {in})	–			28.0 {1.10}
Front propeller shaft

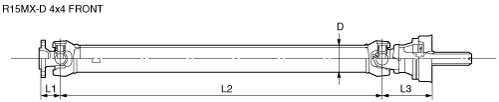

Length (front)		(mm {in})	L1	–			40 {1.57}
			L2	–			470 {18.50}
			L3	–			245 {9.65}
Outer diameter (front)		(mm {in})	D	–			57.0 {2.24}
Rear propeller shaft

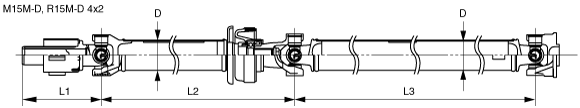

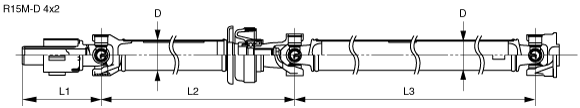

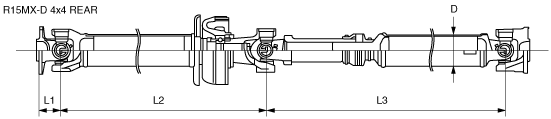

Length (rear)		(mm {in})	L1	159 {6.26}			45.3 {1.78}
			L2	666.1 {26.22}			545.8 {21.49}
			L3	956.1 {37.64}			936.4 {36.87}
Outer diameter (rear)		(mm {in})	D	63.5 {2.50}
Joint type				Cross-shaped joint
Transfer
Gear ratio	High			–			1.000
	Low			–			2.210
Transfer oil	Grade			–			API service GL-4 or GL-5
	Viscosity		All season	–			SAE 75W-90
			Above 10°C {50°F}	–			SAE 80W-90
	Oil capacity (approx. quantity)		(L {US qt, Imp qt})	–			2.0 {2.1, 1.8}

Item				Specification
Engine				WLT-1, WLT-2
Transmission type				R15M-D	R15MX-D
Vehicle type				4×2	4×4
Front axle
Bearing type				Taper roller bearing
Rear axle
Bearing type				Taper roller bearing
Support type				Semi-floating
Casing				Banjo type
Length			(mm {in})	739 {29.1}
Diameter			(mm {in})	35.0 {1.4}
Rear differential
Reduction gear				Hypoid gear
Differential gear				Straight bevel gear
Ring gear size			(Inches)	8.0
Final gear ratio				4.100	4.444
Differential oil	Type	Grade		Standard differential: API service GL-5 LSD: API service GL-6
		Viscosity		SAE 90
		Capacity (approx. quantity)		1.40 {1.48, 1.23}	1.85 {1.96, 1.63}
		(L {US qt, lmp qt})
Front differential
Reduction gear				–	Hypoid gear
Differential gear				–	Straight bevel gear
Ring gear size			(Inches)	–	7.3
Final gear ratio				–	4.444
Differential oil	Type	Grade		–	API service GL-5
		Viscosity		–	Above -18 °C {0 °F}: SAE90 Below -18 °C {0 °F}: SAE80
		Capacity (approx. quantity)		–	1.5 {1.6, 1.3}
		(L {US qt, lmp qt})
Front drive shaft
Joint type		Wheel side		–	Bell joint
		Differential side		–	Double offset joint
Shaft diameter			(mm {in})	–	28.0 {1.10}
Front propeller shaft
Length (front)		(mm {in})	L1	–	40 {1.57}
			L2	–	470 {18.50}
			L3	–	245 {9.65}
Outer diameter (front)		(mm {in})	D	–	57.0 {2.24}
Rear propeller shaft
Length (rear)		(mm {in})	L1	159 {6.26}	45.3 {1.78}
			L2	666.1 {26.22}	545.8 {21.49}
			L3	956.1 {37.64}	936.4 {36.87}
Outer diameter (rear)		(mm {in})	D	63.5 {2.50}
Joint type				Cross-shaped joint
Transfer
Gear ratio	High			–	1.000
	Low			–	2.210
Transfer oil	Grade			–	API service GL-4 or GL-5
	Viscosity		All season	–	SAE 75W-90
			Above 10°C {50°F}	–	SAE 80W-90
	Capacity (approx. quantity)		(L {US qt, Imp qt})	–	2.0 {2.1, 1.8}

Irem				Specification
Engine				WL-3	WL-C	WL-C, WE-C
Drive type				4×2	4×2	4×2 (High clearance model)	4×4
Transmission type				R15M-D	S15M-D		S15MX-D
Front axle
Bearing type				Taper roller bearing
Rear axle
Bearing type				Taper roller bearing
Support type				Semi-floating
Casing				Banjo type
Length				739 {29.1}
Diameter				35.0 {1.4}
Rear differential
Reduction gear				Hypoid gear
Differential gear				Straight bevel gear
Ring gear size			(Inches)	8.0	8.9
Final gear ratio				3.909	3.416	3.727
Differential oil	Type	Grade		API service GL-5	API service GL-5
		Viscosity		SAE 90	SAE 80W-90		Except Russia:
							SAE 80W-90
							Russia:
							SAE 75W-90 or 80W-90
		Capacity (approx. quantity)		1.40 {1.48, 1.23}	2.45 {2.32, 2.04}	3.0 {3.17, 2.64}
		(L {US qt, lmp qt})
Front differential
Reduction gear				–			Hypoid gear
Differential gear				–			Straight bevel gear
Ring gear size			(Inches)	–			8.00
Final gear ratio				–			3.727
Differential oil	Type	Grade		–			API service GL-5
		Viscosity		–			Except Russia:
							Above -18 °C {0 °F}: SAE90 Below -18 °C {0 °F}: SAE80
							Russia:
							SAE 75W-90 or 80W-90
		Capacity (approx. quantity)		–			1.9 {1.8, 1.6}
		(L {US qt, lmp qt})
Front drive shaft
Joint type		Wheel side		–			Bell joint
		Differential side		–			Double offset joint
Shaft diameter			(mm {in})	–			30.0 {1.18}
Front propeller shaft
Length (front)		(mm {in})	L1	–			45.3 {1.78}
			L2	–			552.1 {21.74}
			L3	–			45.3 {1.78}
Outer diameter (front)		(mm {in})	D	–			63.5 {2.50}
Rear propeller shaft
Length (rear)		(mm {in})	L1	159 {6.26}	163.4 {6.433}		41.1 {1.62}
			L2	666.1 {26.22}	670.6 {26.40}		443.6 {17.46}
			L3	956.1 {37.64}	909.8 {35.82}	890.3 {35.05}	896.3 {35.29}
Outer diameter (rear)		(mm {in})	D	63.5 {2.50}
Joint type				Cross-shaped joint
Transfer
Gear ratio	High			–			1.000
	Low			–			2.020
Transfer oil	Type			–			MANUAL TRANSMISSION FLUID TYPE A
	Oil capacity (approx. quantity)		(L {US qt, Imp qt})	–			1.85 {1.95, 1.63}
