Item
Specification
Engine
WL-C
WE-C
WL-C, WE-C
Transmission type
5R55S
Vehicle type
4×2
4×2 (High clearance model)
4×4
Front axle
Bearing type
Taper roller bearing
Rear axle
Bearing type
Taper roller bearing
Support type
Semi-floating
Casing
Banjo type
Length
(mm {in})
739 {29.1}
Diameter
(mm {in})
35.0 {1.4}
Rear differential
Reduction gear
Hypoid gear
Differential gear
Straight bevel gear
Ring gear size
(Inches)
8.9
Final gear ratio
3.416
3.727
Differential oil
Type
Grade
API service GL-5
Viscosity
SAE 80W-90
Capacity
(approx. quantity)
2.45 {2.32, 2.04}
3.0 {3.17, 2.64}
(L {US qt, lmp qt})
Front differential
Reduction gear
–
Hypoid gear
Differential gear
–
Straight bevel gear
Ring gear size
(Inches)
–
8.00
Final gear ratio
–
3.727
Differential oil
Type
Grade
–
API service GL-5
Viscosity
–
Above -18 °C {0 °F}: SAE90
Below -18 °C {0 °F}: SAE80
Capacity
(approx. quantity)
–
1.9 {1.8, 1.6}
(L {US qt, lmp qt})
Front drive shaft
Joint type
Wheel side
–
Bell joint
Differential side
–
Double offset joint
Shaft diameter
(mm {in})
–
30.0 {1.18}

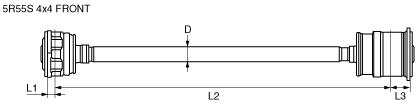

Front propeller shaft
Length (front)
(mm {in})
L1
–
13.2 {0.52}
L2
–
588.4 {23.17}
L3
–
34.3 {1.35}
Outer diameter (front)
(mm {in})
D
–
26.5 {1.04}

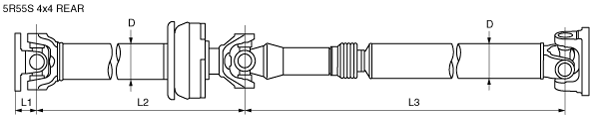

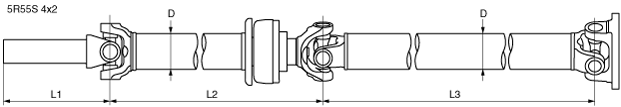

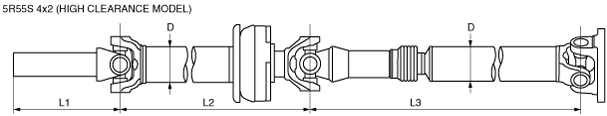

Rear propeller shaft
Length (rear)
(mm {in})
L1
192.5 {7.579}
41.1 {1.62}
L2
677.6 {26.68}
691.6 {27.23}
443.6 {17.46}
L3
909.8 {35.82}
890.3 {35.05}
896.3 {35.29}
Outer diameter (rear)
(mm {in})
D
63.5 {2.50}
Joint type
Cross-shaped joint
Transfer case
Gear ratio
High
–
1.000
Low
–
2.480
Transfer case oil
Type
–
Mercon® V
Oil capacity
(approx. quantity)
(L {US qt, Imp qt})
–
1.2 {1.3, 1.1}
