DTC No.1 [WL-C, WE-C (AT)]
id0302a3801700
|
DTC No.1 |
4x4 CM malfunction |
|---|---|
|
DETECTION CONDITION
|
• Open circuit or short to ground has been detected in the 4x4 CM wiring harness.
|
|
POSSIBLE CAUSE
|

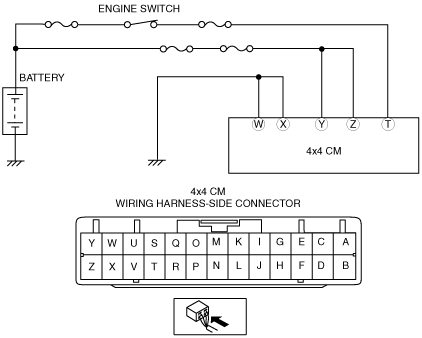

• Open circuit or short to ground in the wiring harness between the following 4x4 CM terminals T, Y, Z and battery
• Open circuit in the wiring harness between the following 4x4 CM terminals W, X and ground
• 4x4 CM malfunction
• Poor connection at connector (female terminal)
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
MEASURE VOLTAGE BETWEEN 4x4 CONTROL MODULE CONNECTOR TERMINAL T, Y, Z AND GROUND
• Turn engine switch ON.
• Is the voltage greater than 10 V?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness, then go to step 3.
|
||
|
2
|
INSPECT FOR CONTINUITY BETWEEN 4x4 CONTROL MODULE CONNECTOR TERMINAL W, X AND GROUND
• Turn engine switch OFF.
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness, then go to next step.
|
||
|
3
|
VERIFY THAT THE SAME DTC IS NOT PRESENT
• Clear the DTCs from the memory.
• Are any DTCs present?
|
Yes
|
If the malfunction recurs, replace the 4x4 CM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
2
|
VERIFY THAT NO OTHER DTCS ARE PRESENT
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC troubleshooting.
|
|
No
|
Troubleshooting completed.
|
||
