PRECAUTION [G6, WLT-1, WLT-2]
id030303801500
• This section only mentions unique symptoms of the trouble caused by RFW. Inspect and repair as necessary for trouble caused by other sources.
• Inspect the connector and terminal connections when inspecting the wiring harness. (The cause of the malfunction may be a poor connection in the connectors, terminals, or wiring harnesses.)

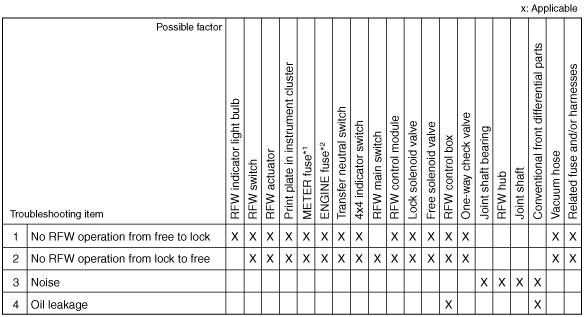

Quick Diagnosis Chart
*1 :G6
*2 :WLT-1, WLT-2
