PRECAUTION [WL-C, WE-C (AT)]


id0303c3801500

•  This section only mentions unique symptoms of the trouble caused by 4x4 system.
Inspect and repair if necessary for trouble caused by other sources.
•  Inspect the connector and terminal connections when inspecting the wiring harness.
(The cause of the malfunction may be a poor connection in the connectors, terminals, or wiring harness.)

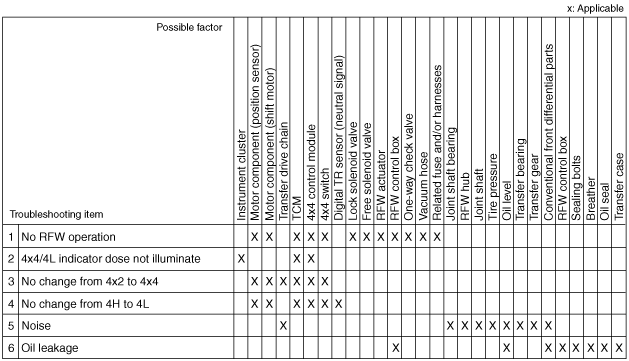

Quick Diagnosis Chart

arnffw00001938
