REAR AXLE ADJUSTMENT

id031200803200

Wheel Bearing Play Adjustment

1.  Adjust the bearing end play in the axial direction using the following procedures.

(1)  Press one side of the rear axle shaft components to the thrust bearing on the differential.

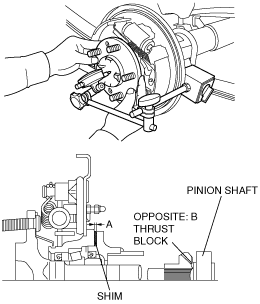

(2)  Measure the clearance between the bearing housing and the axle housing (part A in the figure).

absggw00000459

(3)  Select a shim that is 0.65—0.95 mm {0.026—0.037 in} thicker than the clearance measured in Step 2 and install it.

(4)  Measure the clearance of the rear axle shaft component on the opposite side using the same procedure in Steps 1 and 2 above.

(5)  Select a shim that is 0.05—0.25 mm {0.002—0.009 in} thicker than the clearance measured in Step 4 and install it.

(6)  Verify that the rear axle bearing end play is within a range of 0.05—0.25 mm {0.002—0.009 in}.

•  If it is not within the range, adjust the rear axle bearing end play again.

Rear axle bearing play in axial direction

0.05—0.25 mm {0.002—0.009 in}
