PROPELLER SHAFT REMOVAL/INSTALLATION

id031500800300

1.  Remove the member.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

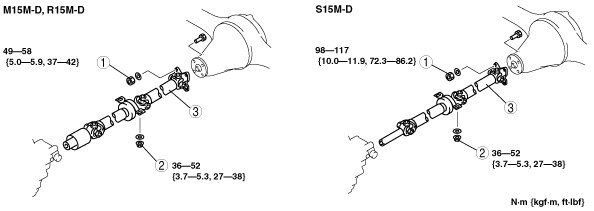

4x2

absggw00001264

1	Nut
2	Nut
3	Propeller shaft (See Propeller Shaft Removal Note.) (See Propeller Shaft Installation Note.)

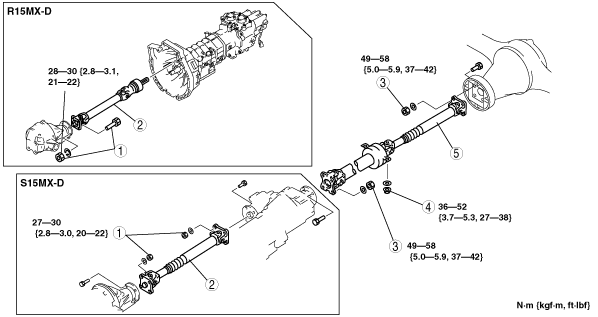

4x4

absggw00001265

1	Nut
2	Propeller shaft (See Propeller Shaft Removal Note.) (See Propeller Shaft Installation Note.)
3	Nut
4	Nut
5	Propeller shaft (See Propeller Shaft Removal Note.) (See Propeller Shaft Installation Note.)

Propeller Shaft Removal Note

Caution

•  When replacing with a new propeller shaft, mark the companion flange to match the position of the tag on the propeller shaft.

1.  Before removing the propeller shaft, make alignment marks on the yoke and differential companion flange.

Front propeller shaft (R15MX-R)

arnffw00000882

Front propeller shaft (S15MX-R)

arnffw00000873

Rear propeller shaft

arnffw00000874

2.  Install the SST to the extension housing. (M15M-D, R15M-D)

arnffw00000875

Propeller Shaft Installation Note

1.  Align the marks and install the propeller shaft.

2.  When installing a new propeller shaft, align the differential companion flange mark with the tag on the propeller shaft and assemble.

Front propeller shaft (R15MX-R)

arnffw00000882

Front propeller shaft (S15MX-R)

arnffw00000873

Rear propeller shaft

arnffw00000874
