PROPELLER SHAFT REMOVAL/INSTALLATION [5AT]

id0315b3800300

1. Remove the member.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

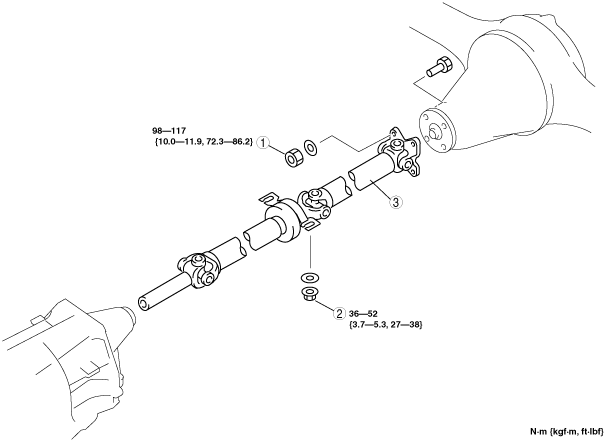

4x2

absggw00000990

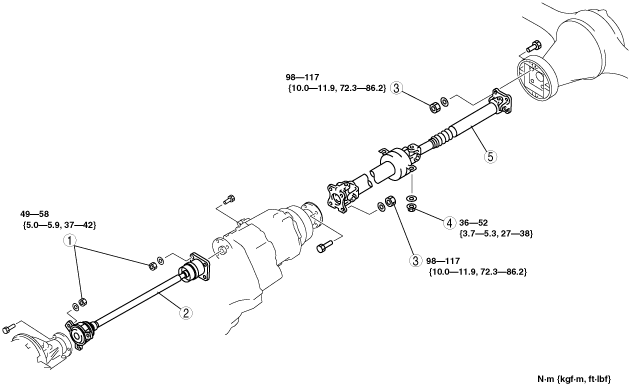

4x4

arnffw00001947

Propeller Shaft Removal Note

Caution

• When replacing with a new propeller shaft, mark the companion flange to match the position of the tag on the propeller shaft.

1. Before removing the propeller shaft, make alignment marks on the yoke and differential or transfer companion flange.

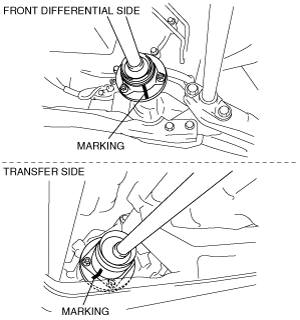

Front propeller shaft (4x4)

absggw00000995

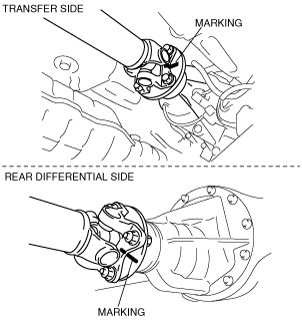

Rear propeller shaft

absggw00001021

Propeller Shaft Installation Note

1. Align the marks and install the propeller shaft.

2. When installing a new propeller shaft, align the differential or transfer companion flange mark with the tag on the propeller shaft and assemble.

Front propeller shaft (4x4)

absggw00000995

Rear propeller shaft

absggw00001021

1	Nut
2	Nut
3	Propeller shaft (See Propeller Shaft Removal Note.) (See Propeller Shaft Installation Note.)

1	Nut
2	Front propeller shaft (See Propeller Shaft Removal Note.) (See Propeller Shaft Installation Note.)
3	Nut
4	Nut
5	Rear propeller shaft (See Propeller Shaft Removal Note.) (See Propeller Shaft Installation Note.)
