TRANSFER CASE STRUCTURAL VIEW [5R55S]
id0316c1100500
arnffn00000404
|

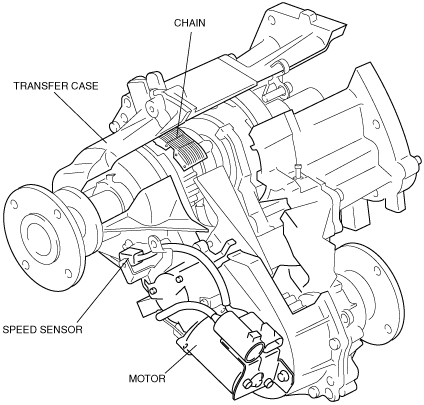

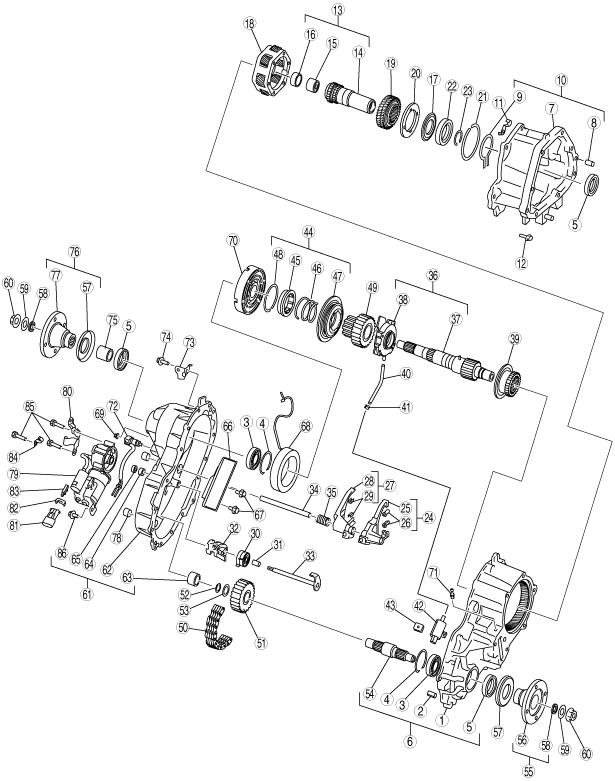

Exploded view
b5r5za00000446
|
|
1
|
Center transfer case
|
|
2
|
Dowel pin
|
|
3
|
Bearing
|
|
4
|
Snap ring
|
|
5
|
Oil seal
|
|
6
|
Center transfer case component
|
|
7
|
Front transfer case
|
|
8
|
Dowel pin
|
|
9
|
Snap ring
|
|
10
|
Front transfer case component
|
|
11
|
Clip
|
|
12
|
Bolt
|
|
13
|
Input shaft component
|
|
14
|
Input shaft
|
|
15
|
Needle bearing
|
|
16
|
Bushing
|
|
17
|
Thrust washer
|
|
18
|
Planetary gear component
|
|
19
|
Sun gear
|
|
20
|
Thrust plate
|
|
21
|
Snap ring
|
|
22
|
Ball bearing
|
|
23
|
Snap ring
|
|
24
|
Reduction shift fork component
|
|
25
|
Reduction shift fork
|
|
26
|
Reduction shift fork facing
|
|
27
|
Lockup shift fork component
|
|
28
|
Lockup shift fork
|
|
29
|
Lockup shift fork facing
|
|
30
|
Spring
|
|
31
|
Spacer
|
|
32
|
Cam
|
|
33
|
Shift shaft
|
|
34
|
Rail shift
|
|
35
|
Return spring
|
|
36
|
Output shaft and gerotor pump component
|
|
37
|
Output shaft component
|
|
38
|
Gerotor pump component
|
|
39
|
Reduction hub
|
|
40
|
Pump hose
|
|
41
|
Hose clamp
|
|
42
|
Oil strainer
|
|
43
|
Magnet
|
|
44
|
Lockup component
|
|
45
|
Lockup hub
|
|
46
|
Spring
|
|
47
|
Lockup collar
|
|
48
|
Snap ring
|
|
49
|
Drive sprocket
|
|
50
|
Drive chain
|
|
51
|
Driven sprocket
|
|
52
|
Snap ring
|
|
53
|
Spacer
|
|
54
|
Lower output shaft
|
|
55
|
Front output flange component
|
|
56
|
Front output flange
|
|
57
|
Deflector
|
|
58
|
Oil seal
|
|
59
|
Washer
|
|
60
|
Locknut
|
|
61
|
Rear transfer case component
|
|
62
|
Rear transfer case
|
|
63
|
Needle bearing
|
|
64
|
Sleeve
|
|
65
|
Seal
|
|
66
|
Snubber
|
|
67
|
Bolt
|
|
68
|
Clutch coil
|
|
69
|
Nut
|
|
70
|
Clutch housing
|
|
71
|
Breather pipe
|
|
72
|
Speed sensor component
|
|
73
|
Bracket
|
|
74
|
Bolt
|
|
75
|
Spacer
|
|
76
|
Rear companion flange component
|
|
77
|
Rear companion flange
|
|
78
|
Oil plug
|
|
79
|
Motor component
|
|
80
|
Bracket
|
|
81
|
Terminal connector
|
|
82
|
Clip
|
|
83
|
Bracket
|
|
84
|
Clip
|
|
85
|
Bolt
|
|
86
|
Bolt
|
