MOTOR POSITION DETECTION SWITCH CONSTRUCTION/OPERATION [5R55S]

id0316c1137200

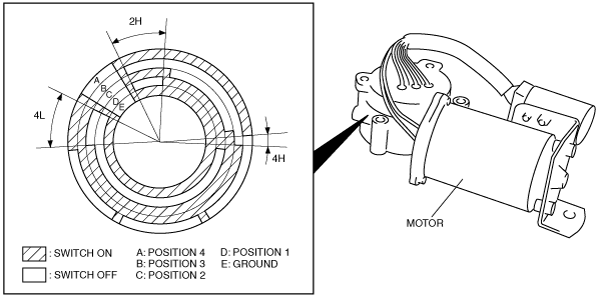

•  The motor position detection switch is integrated into the motor, and turns on or off according to the motor position.
•  The motor position detection switch detects the motor position using a combination of four switches.

Motor Position

Position 1

Position 2

Position 3

Position 4
2H
Off
On
Off
On
4H
On
On
Off
Off
4L
Off
Off
On
On

arnffn00000342
