CONTROL BOX REMOVAL/INSTALLATION

id031800801700

1.  Drain the front differential oil into a container.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Add the specified front differential oil.

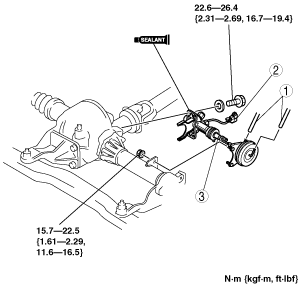

dbg318zwb032

1	Vacuum hose
2	RFW switch connector
3	Control box
