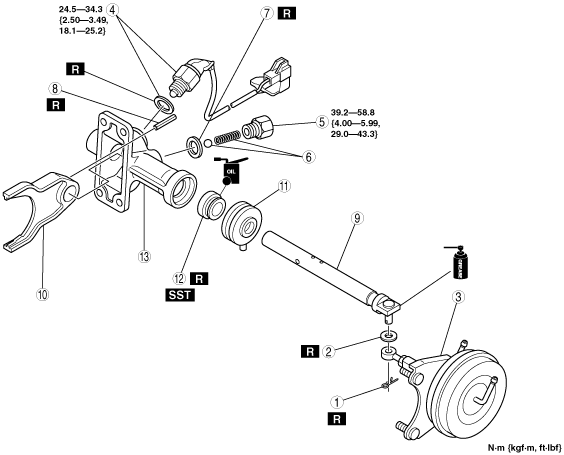

CONTROL BOX DISASSEMBLY/ASSEMBLY
id031800801800
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
dbg318zwb033
|
|
1
|
Snap ring
|
|
2
|
Washer
|
|
3
|
RFW actuator
|
|
4
|
RFW switch and washer
|
|
5
|
Spring cap
|
|
6
|
Spring and ball
|
|
7
|
Washer
|
|
8
|
Roll pin
(See Roll Pin Disassembly Note.)
(See Roll Pin Assembly Note.)
|
|
9
|
Change rod
|
|
10
|
Shift fork
|
|
11
|
Boot
(See Boot Assembly Note.)
|
|
12
|
Oil seal
(See Oil Seal Assembly Note.)
|
|
13
|
Control box
|
Roll Pin Disassembly Note
1. Remove the roll pin as shown in the figure.
dbg318zwb034
|
Oil Seal Assembly Note
1. Assemble a new oil seal using the SST and a press.
dbg318zwb035
|
Boot Assembly Note
1. Assemble the boot as shown in the figure.
dbg318zwb036
|
Roll Pin Assembly Note
1. Install a new roll pin as shown in the figure.
dbg318zwb037
|
