RFW CONTROL MODULE REMOVAL/INSTALLATION [G6, WLT-1, WLT-2]

id0318008026c1

1.  Disconnect the negative battery cable.

2.  Remove the front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

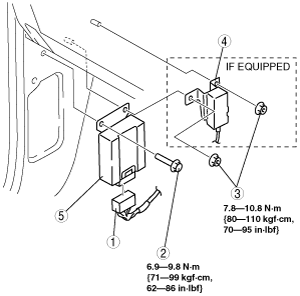

arnffw00001342

1	Connector
2	Bolt
3	Nut
4	Relay
5	RFW control module
