DLC-2 CONSTRUCTION [ANTILOCK BRAKE SYSTEM (ABS)]

id0402001006b0

•  A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been added.

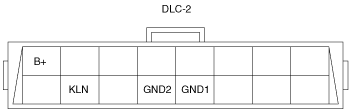

•  Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted for this connector. The connector has a 16-pin construction that includes the KLN, GND1, GND2 and B+ terminals.
dbr402ztb002

Terminal

Function
KLN
Serial communication KLN terminal
GND1
Body ground terminal
GND2
Serial communication ground terminal
B+
Battery power supply terminal
