SYMPTOM TROUBLESHOOTING

id040300804200

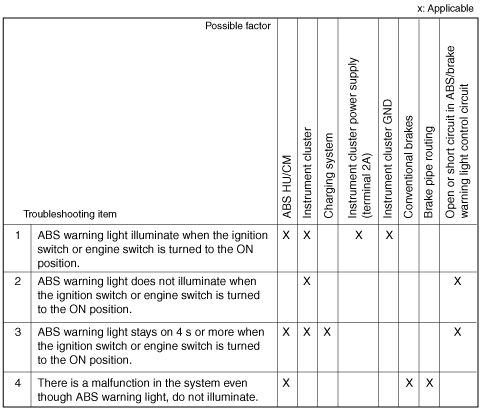

• Verify the symptoms, and perform troubleshooting according to the appropriate number.

No.

Symptom

1

ABS warning light illuminate when the ignition switch or engine switch is turned to the ON position.

2

ABS warning light does not illuminate when the ignition switch or engine switch is turned to the ON position.

3

ABS warning light stays on 4 s or more when the ignition switch or engine switch is turned to the ON position.

4

There is a malfunction in the system even through ABS warning light, do not illuminate.

No.	Symptom
1	ABS warning light illuminate when the ignition switch or engine switch is turned to the ON position.
2	ABS warning light does not illuminate when the ignition switch or engine switch is turned to the ON position.
3	ABS warning light stays on 4 s or more when the ignition switch or engine switch is turned to the ON position.
4	There is a malfunction in the system even through ABS warning light, do not illuminate.

absggw00000773
