DISC PAD (FRONT) REPLACEMENT [4X2 (HIGH CLEARANCE MODEL), 4x4]

id0411008007a7

1.  Remove in the order indicated in the table.

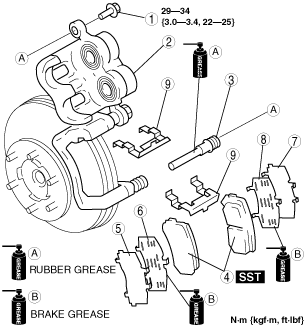

absggw00001192

1	Bolt
2	Caliper
3	Guide pin
4	Disc pad (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4X2 (HIGH CLEARANCE MODEL), 4x4])
5	Outer shim (cover shim) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4X2 (HIGH CLEARANCE MODEL), 4x4])
6	Outer shim (rubber coated shim) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4X2 (HIGH CLEARANCE MODEL), 4x4])
7	Inner shim (cover shim) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4X2 (HIGH CLEARANCE MODEL), 4x4])
8	Inner shim (rubber coated shim) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4X2 (HIGH CLEARANCE MODEL), 4x4])
9	Guide plate (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4X2 (HIGH CLEARANCE MODEL), 4x4])

2.  Install in the reverse order of removal.
