CALIPER (FRONT) DISASSEMBLY/ASSEMBLY [4X2 (HIGH CLEARANCE MODEL), 4x4]

id0411008010a7

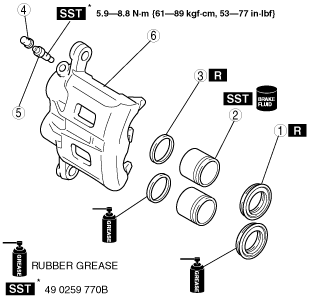

1.  Disassemble in the order indicated in the table.

absggw00001197

1	Dust seal
2	Piston (See Piston Disassembly Note)
3	Piston seal
4	Bleeder cap
5	Bleeder screw
6	Caliper

2.  Assemble in the reverse order of removal.

Piston Disassembly Note

Caution

•  The piston could be damaged if blown out with great force. Blow the compressed air slowly to prevent the piston from suddenly popping out.

1.  Place the SST in the caliper, then blow compressed air through the hole to force the piston out of the caliper.
