MASTER CYLINDER REMOVAL/INSTALLATION [MT]

id0411008013c9

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

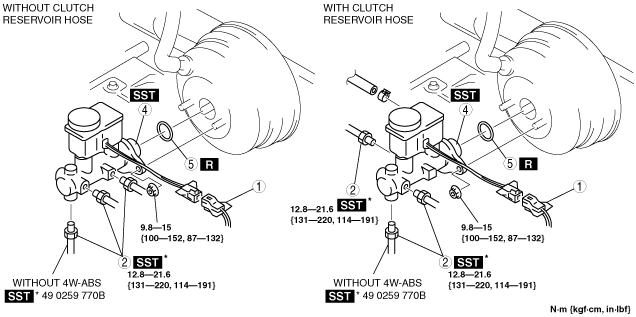

L.H.D.

arnffw00000329

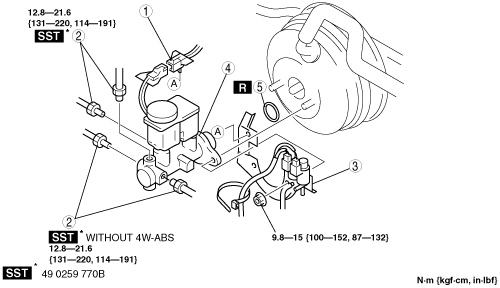

R.H.D.

arnffw00000330

1	Brake fluid level sensor connector
2	Brake pipe
3	Bracket
4	Master cylinder
5	O-ring
