MASTER CYLINDER REMOVAL/INSTALLATION [AT]

id0411008013d3

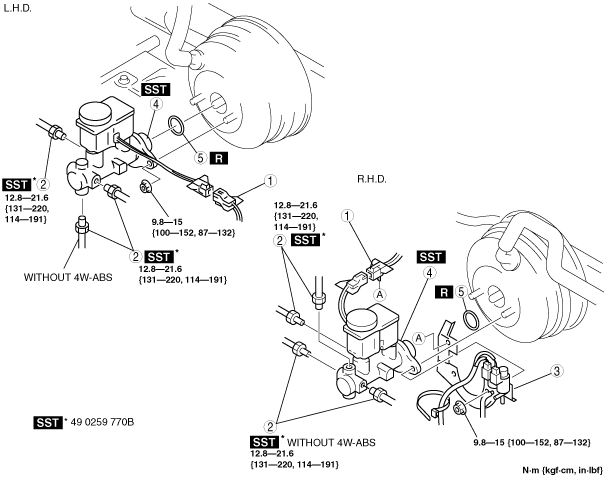

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

arnffw00001966

1	Brake fluid level sensor connector
2	Brake pipe
3	Bracket
4	Master cylinder
5	O-ring
