VACUUM LINE INSPECTION

id041100801500

1.  Remove the vacuum hose.

2.  Verify that air can be blown from the power brake unit side of the vacuum hose towards the vacuum pump or intake manifold side, and that air cannot be blown in the opposite direction.

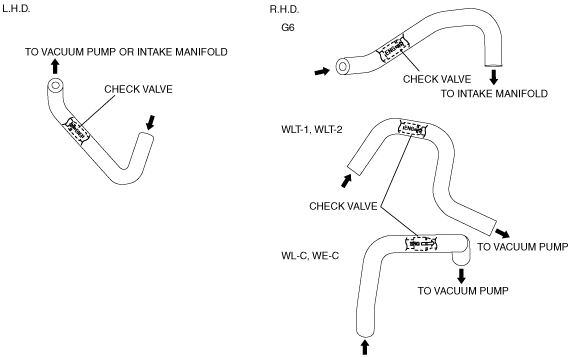

absggw00000715

•  If there is any malfunction of the inner check valve, replace it together with the vacuum hose as a single unit.
