BRAKE SWITCH REMOVAL/INSTALLATION

id041100803500

1.  Remove in the order indicated in the table.

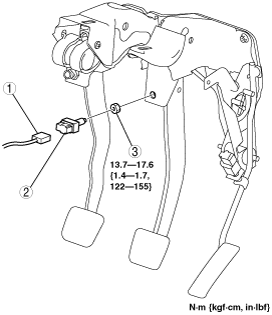

dbr411zwb053

1	Brake switch connector
2	Brake switch
3	Nut

2.  Install in the reverse order of removal.

3.  After installation, inspect the brake pedal. (See BRAKE PEDAL INSPECTION.)
