WHEEL CYLINDER DISASSEMBLY/ASSEMBLY

id041100811100

Caution

•  Replace the wheel cylinder component if a problem is found.

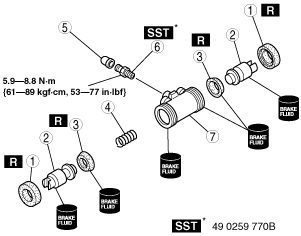

1.  Disassemble in the order indicated in the table.

dbr411zwb045

1	Dust boot
2	Wheel cylinder piston
3	Piston cup
4	Wheel cylinder spring
5	Bleeder cap
6	Bleeder screw
7	Wheel cylinder body

2.  Assemble in the reverse order of disassembly.
