LOAD SENSING PROPORTIONING VALVE (LSPV) REMOVAL/INSTALLATION

id041100811400

Caution

•  Do not disassemble the load sensing proportioning valve (LSPV) or move nut A, otherwise the LSPV may not function properly.

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, adjust the main spring dimension. (See LOAD SENSING PROPORTIONING VALVE (LSPV) ADJUSTMENT.)

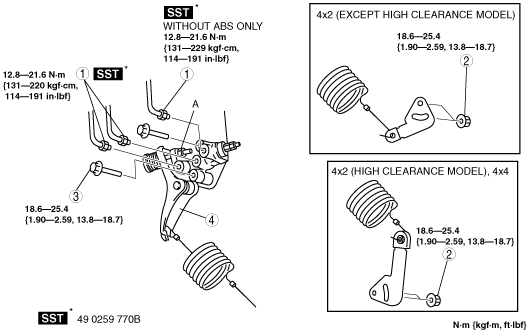

dbr411zwb028

1	Brake pipe (See Brake Pipe Installation Note)
2	Nut
3	Bolt
4	Load sensing proportioning valve (LSPV)

Brake Pipe Installation Note

1.  Install the brake pipe to the LSPV and align yellow painting on the brake pipe and LSPV.

dbr411zwb029
