FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4X2 (EXCEPT HIGH CLEARANCE MODEL)]

id041300800750

1.  When removing the ABS wheel-speed sensor on the right side, remove the washer tank installation bolts and the connector, then move the washer tank to a place out of the way. (See WINDSHIELD WASHER TANK REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

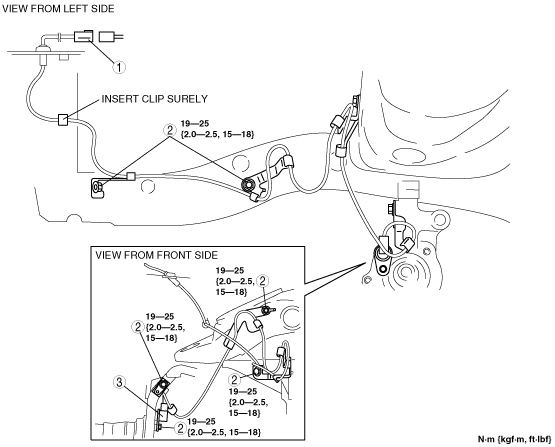

dbr413zwb008

1	Connector
2	Bolt
3	Front ABS wheel‐speed sensor
