FOREWORD [5R55S]

id0502c1800200

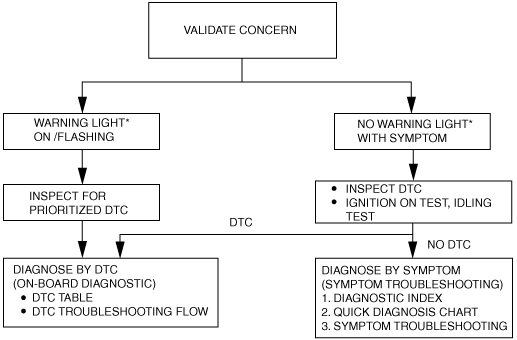

• When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL) indication, O/D OFF indicator light flashing, and TCM memory for diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.

― If the DTC exists, diagnose the applicable DTC. (See DTC TABLE [5R55S].)

― If the DTC does not exist and the MIL does not illuminate, and the O/D OFF indicator light flashes, diagnose the applicable symptom troubleshooting. (SeeSYMPTOM TROUBLESHOOTING ITEM TABLE [5R55S].)

atraaw00003385

*: Malfunction Indicator Lamp (MIL), O/D OFF indicator light
