FOREWORD [5R55S]

id0503c1800200

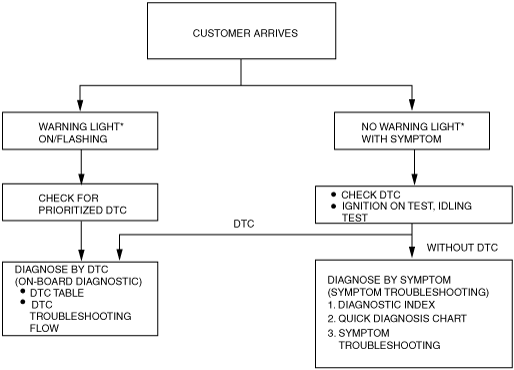

• When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL) indication, O/D OFF indicator light flash, and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart.

― If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [5R55S].)

― If a DTC does not exist, the MIL does not illuminate and O/D OFF indicator light flash, diagnose the applicable symptom troubleshooting. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [5R55S].)

acxuuw00002535

*: Malfunction Indicator Lamp (MIL), O/D OFF indicator light.
