CLUTCH PEDAL ADJUSTMENT

id051000802100

Clutch Pedal Stroke Inspection/Adjustment

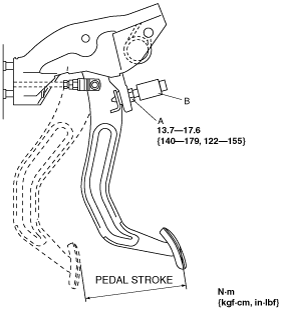

1. Measure the clutch pedal stroke.

absggw00001227

• If there is any malfunction, loosen locknut A and adjust the pedal stroke by clutch switch B. Tighten locknut A after adjustment.

Clutch pedal stroke

149 mm {5.87 in} (L.H.D.)

152 mm {5.98 in} (R.H.D.)

Clutch Pedal Play Inspection/Adjustment

1. Lightly depress the clutch pedal by hand until clutch resistance is felt and then measure the pedal play.

absggw00001228

Clutch pedal play

5—15 mm {0.20—0.59 in}

Clutch pedal push rod play (Reference value)

0.1—0.5 mm {0.004—0.020 in}

2. If it is not within the specification, loosen locknut C and turn push rod D to adjust the pedal play.

3. Remeasure the pedal play and, if it is within the specification, tighten locknut C.

Clutch Disengagement Point Inspection

1. Start the engine.

2. Without depressing the clutch pedal, move the shift lever slowly to the reverse position until gear noise is heard and hold the lever in that position.

3. Slowly depress the clutch pedal and hold at the point where the gear noise stops (clutch disengagement point).

4. Measure distance A (from pedal not depressed to clutch disengagement point) and verify that it is within the specification.

absggw00001229

Clutch disengagement stroke (Reference value) [M15M-D, R15M-D, R15MX-D]

A: 100—130 mm {3.94—5.11 in}

Clutch disengagement stroke (Reference value) [S15M-D, S15MX-D]

A: 110—125 mm {4.34—4.92 in}

Clutch Switch Inspection

1. Disconnect the negative battery cable.

2. Disconnect the clutch switch connector.

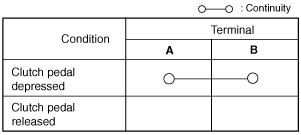

3. Verify continuity as indicated in the table.

absggw00001230

absggw00001231

• If there is any malfunction, replace the clutch switch.
