CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY
id051000802300
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

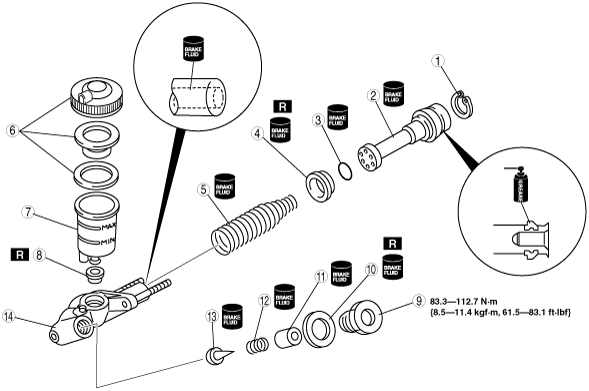

M15M-D, R15M-D, R15MX-D
absggw00001232
|
|
1
|
Snap ring
|
|
2
|
Piston
|
|
3
|
Spacer
|
|
4
|
Primary cup
|
|
5
|
Return spring
|
|
6
|
Tank cap
|
|
7
|
Reservoir
|
|
8
|
Bushing
|
|
9
|
Joint bolt
|
|
10
|
Packing
|
|
11
|
One-way valve piston
|
|
12
|
Return spring
|
|
13
|
One-way valve pin
|
|
14
|
Clutch master cylinder body
|

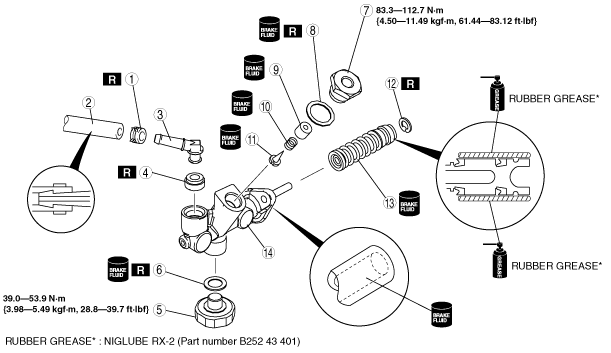

S15M-D, S15MX-D
absggw00001233
|
|
1
|
Hose clip
|
|
2
|
Reserve tank hose
|
|
3
|
Joint
|
|
4
|
Bushing
|
|
5
|
Clutch damper
|
|
6
|
Packing
|
|
7
|
Joint bolt
|
|
8
|
Packing
|
|
9
|
One-way valve piston
|
|
10
|
Return spring
|
|
11
|
One-way valve pin
|
|
12
|
Snap ring
|
|
13
|
Piston component
|
|
14
|
Clutch master cylinder body
|
Snap Ring Disassembly/Assembly Note
1. While pressing the piston in with a cloth-wrapped pin punch to protect the push rod contacting surface, remove/install the snap ring.
