REVERSE LOCKOUT MECHANISM CONSTRUCTION/OPERATION [M15M-D]
id051110103900

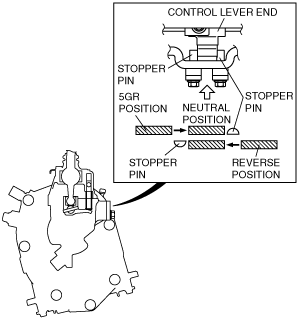

• A stopper pin- type reverse lock-out mechanism has been adopted to ensure reliability.
• The lever end touches the stopper pins to prevent the driver from accidentally shifting to reverse gear when downshifting from 5th to 4th gear. When shifting to reverse gear, temporarily shift back to neutral, then select reverse position. The lever end also touches the stopper pins when shifting from reverse gear to neutral position, preventing the driver from accidentally shifting into 5th gear.
