TRIPLE CONE SYNCHRONIZER MECHANISM STRUCTURE [S15M-D, S15MX-D]
id0511b1103200
Features
• A triple cone synchronizer mechanism is used for the 1st and 2nd gears.
• The triple cone synchronizer mechanism is a compact device capable of heavy duty meshing.
• The synchro mechanism reduces meshing time and improves operation.
• The triple cone synchro mechanism includes a synchronizer ring, a double cone, and an inner cone.
Structure

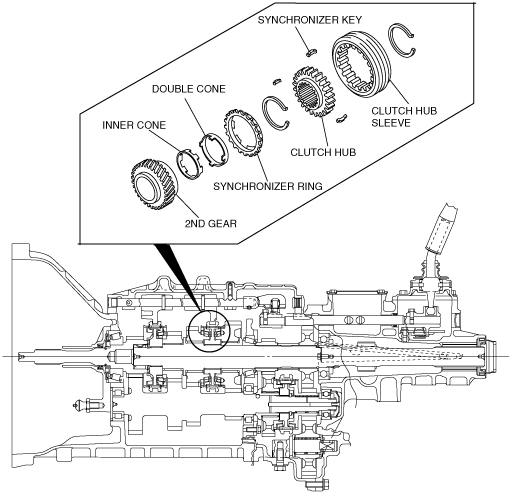

Structural view
