NEUTRAL SWITCH REMOVAL/INSTALLATION [S15M-D, S15MX-D]

id0511b1247100

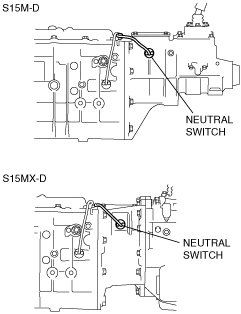

1. Disconnect the negative battery cable.

2. Disconnect the neutral switch connector.

3. Remove the neutral switch.

absggw00001253

4. Install the new neutral switch and a new packing to the transmission case.

Tightening torque

25—34 N·m {2.6—3.4 kgf·m, 19—25 ft·lbf}

5. Connect the neutral switch connector.

6. Connect the negative battery cable.
