TCM REMOVAL/INSTALLATION [5R55S]

id0513c1250800

1.  Disconnect the negative battery cable.

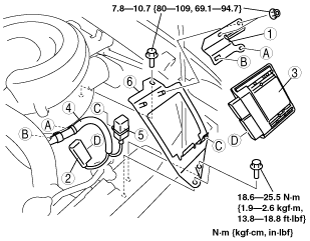

2.  Remove in the order indicated in the table.

absggw00001526

1	Bracket
2	TCM connector
3	TCM
4	Wiring harness
5	AT relay
6	Bracket

3.  Install in the reverse order of removal.
