FLUID FILTER CONSTRUCTION [5R55S]
id0513c1321600

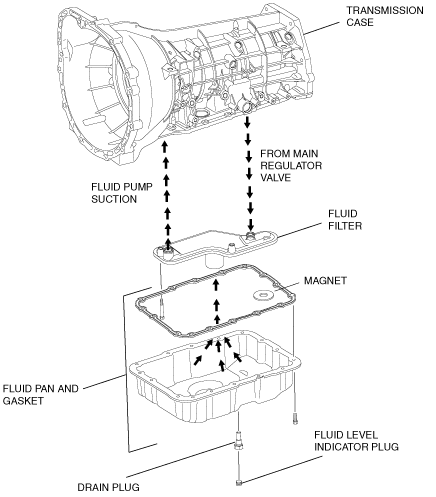

• Fluid in a sump area formed by the fluid pan flows from a filter, through passages in the valve body and transmission case, to the suction port of the fluid pump.
• The transmission fluid filter and its accompanying seals are part of the fluid path from the sump (pan) to the fluid pump.
-
― The transmission fluid filter has a bypass section which allows fluid vented at the main regulator valve to be recirculated to the fluid pump, without passing through the transmission fluid filter.
• A magnet attached to the inside of the fluid pan collects unwanted magnetic material.
