APPLY COMPONENT HYDRAULIC CIRCUITS CONSTRUCTION [5R55S]

id0513c1322100

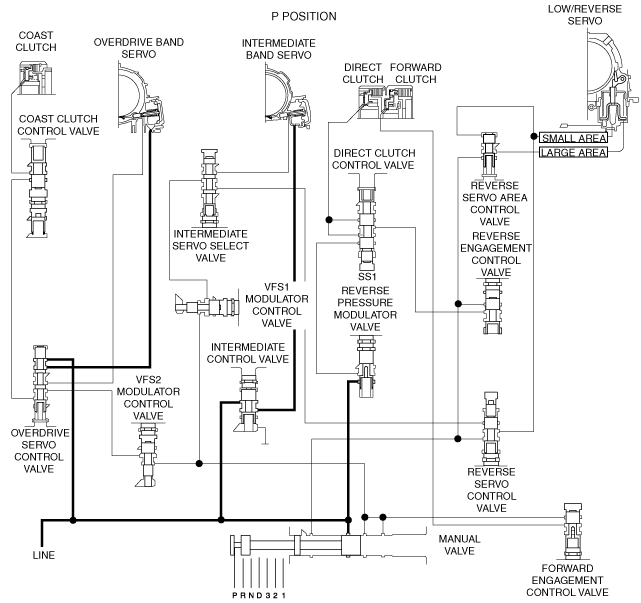

P and N Positions (Park and Neutral)

•  With the transmission in the P or N position, fluid under pressure is present at the following components:
―  Overdrive servo-release
―  Intermediate servo-release
arnffn00000375

R Position (Reverse)

•  With the transmission in the R position, fluid under pressure is present at the following components:
―  Overdrive servo-release
―  Intermediate servo-release
―  Direct clutch
―  Low/reverse servo-apply
arnffn00000376

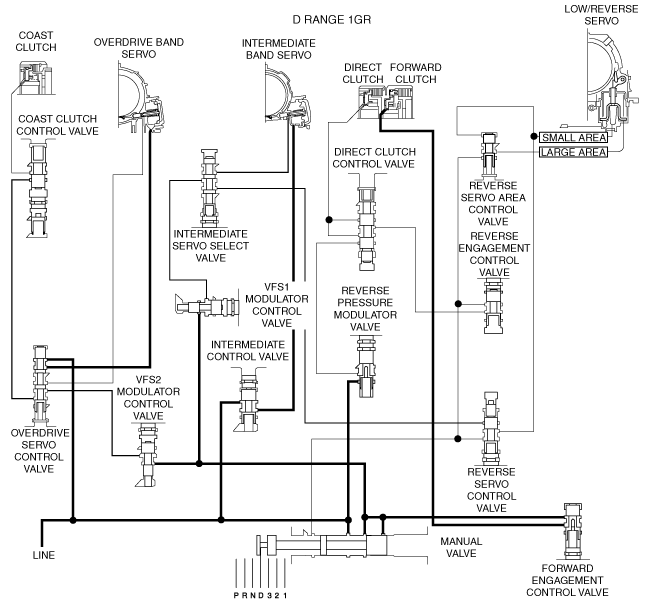

D Range, 1GR

•  With the transmission in the D range, fluid under pressure is present at the following components in 1GR:
―  Overdrive servo-release
―  Intermediate servo-release
―  Forward clutch
arnffn00000377

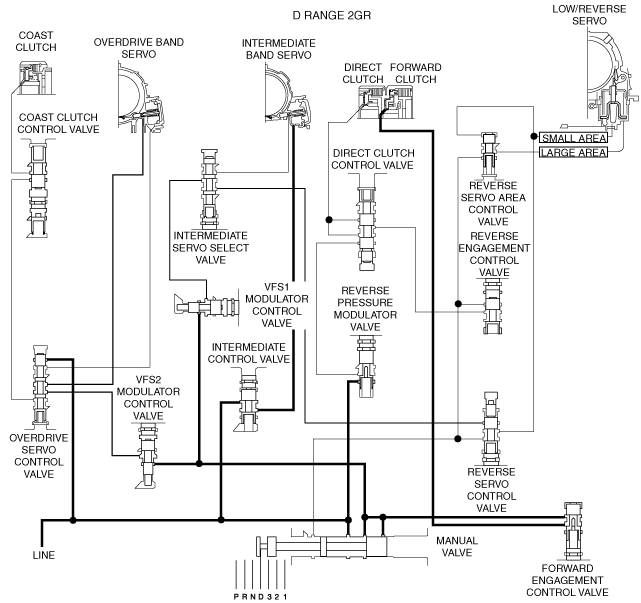

D Range, 2GR

•  With the transmission in the D range, fluid under pressure is present at the following components in 2GR:
―  Overdrive servo-apply
―  Intermediate servo-release
―  Forward clutch
arnffn00000378

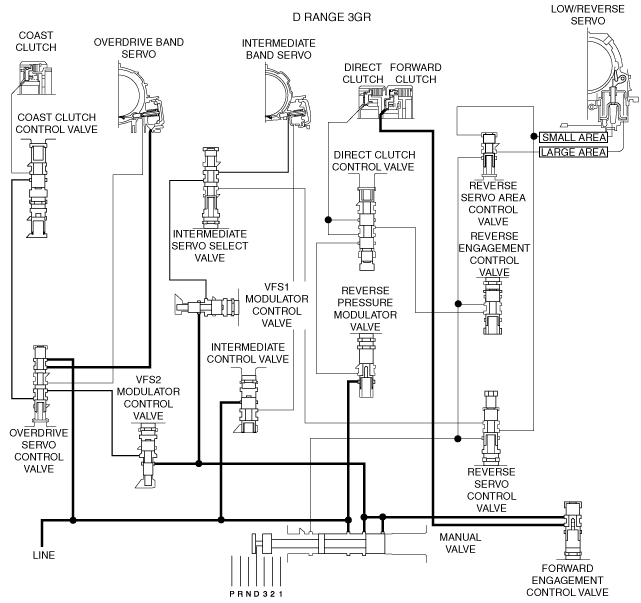

D range, 3GR

•  With the transmission in the D range, fluid under pressure is present at the following components in 3GR:
―  Overdrive servo-release
―  Intermediate servo-apply
―  Forward clutch
arnffn00000379

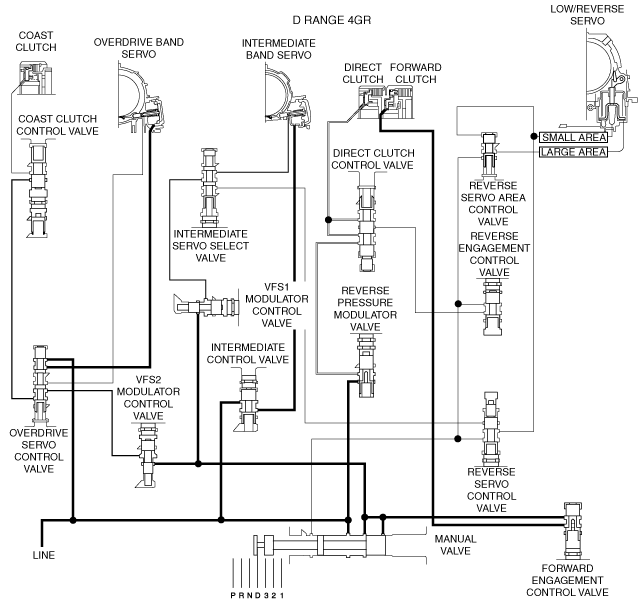

D range, 4GR

•  With the transmission in the D range, fluid under pressure is present at the following components in 4GR:
―  Overdrive servo-release
―  Intermediate servo-release
―  Forward clutch
―  Direct clutch
arnffn00000380

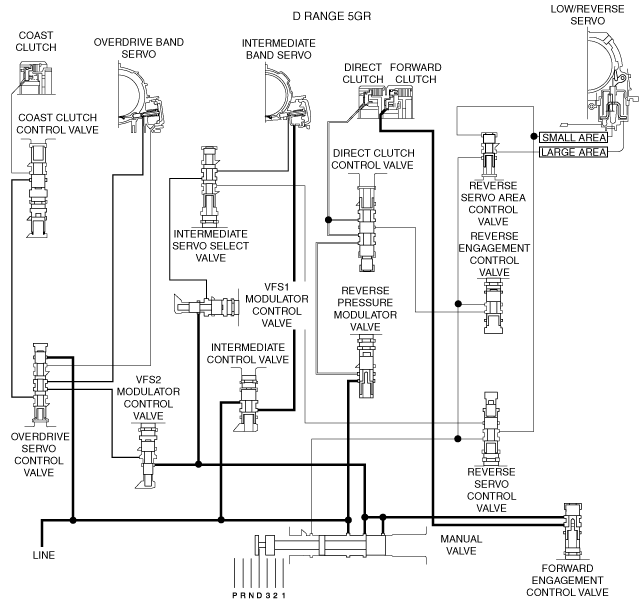

D range, 5GR

•  With the transmission in the D range, fluid under pressure is present at the following components in 5GR:
―  Overdrive servo-apply
―  Intermediate servo-release
―  Forward clutch
―  Direct clutch
arnffn00000381

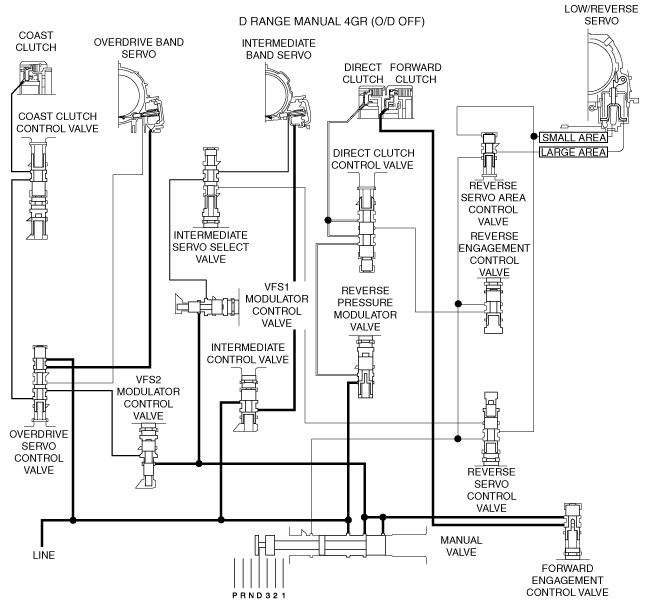

D range O/D OFF Mode, 4GR (Manual 4GR)

•  With the transmission in the D range (O/D OFF mode), fluid under pressure is present at the following components in manual 4GR:
―  Overdrive servo-release
―  Intermediate servo-release
―  Forward clutch
―  Direct clutch
―  Coast clutch
arnffn00000382

3 Range (Manual 3GR)

•  With the transmission in the 3 range, fluid under pressure is present at the following components in manual 3GR:
―  Overdrive servo-release
―  Intermediate servo-apply
―  Forward clutch
―  Coast clutch
arnffn00000383

2 Range (Manual 2GR)

•  With the transmission in the 2 range, fluid under pressure is present at the following components in manual 2GR:
―  Overdrive servo-apply
―  Intermediate servo-release
―  Forward clutch
―  Low/reverse servo-apply
arnffn00000384

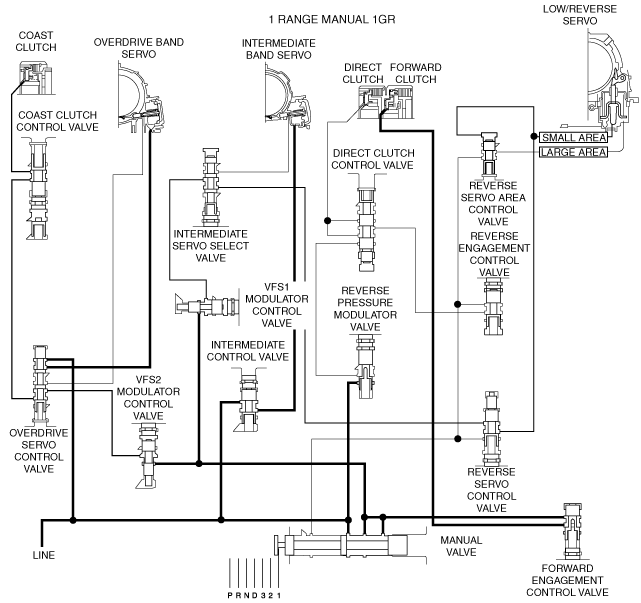

1 Range (Manual 1GR)

•  With the transmission in the 1 range, fluid under pressure is present at the following components in manual 1GR:
―  Overdrive servo-release
―  Intermediate servo-release
―  Forward clutch
―  Coast clutch
―  Low/reverse servo-apply
arnffn00000385
