CONTROL VALVE BODY OUTLINE [5R55S]

id0513c1636600

•  The control valve body component and related components are part of the pressure side of the hydraulic system.
•  The control valve body component consists of the solenoids, the valve body assembly and the separator plate.
•  These components combine to convert electrical signals into hydraulic actions.
―  All valves in the control valve body component are anodized aluminum and cannot be sanded, filed or dressed in any other way. If there is any damage to the valves that prevents or restricts their movement, install a new control valve body component.
arnffn00000362

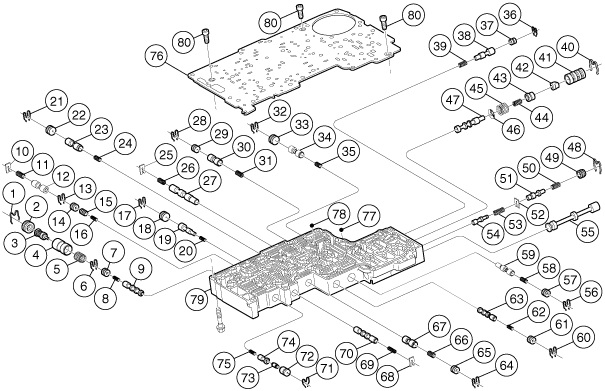

Control Valve Body Component Exploded View

b5r5za00000083

1
Retainer clip
2
Retainer plug
3
Thermo valve component
4
Fluid cooler bypass valve
5
Fluid cooler bypass spring
6
Retainer clip
7
Retainer plug
8
Converter clutch control valve spring
9
Converter clutch control valve
10
Plate
11
Coast clutch control spring
12
Coast clutch control valve
13
Retainer clip
14
Retainer plug
15
Converter clutch back pressure valve
16
Converter clutch back pressure spring
17
Retainer clip
18
Retainer plug
19
VFS2 modulator valve
20
VFS2 modulator valve spring
21
Retainer clip
22
Retainer plug
23
Intermediate servo release valve
24
Intermediate servo release valve spring
25
Plate
26
High clutch control spring
27
High clutch control Valve
28
Retainer plug
29
Retainer clip
30
Reverse modulator valve
31
Reverse modulator valve spring
32
Retainer clip
33
Retainer plug
34
Reverse engagement valve
35
Reverse engagement valve spring
36
Retainer clip
37
Retainer plug
38
VFS1 modulator valve
39
VFS1 modulator valve spring
40
Retainer clip
41
Sleeve
42
Booster valve
43
Booster valve
44
Inner spring
45
Outer spring
46
Retainer spring
47
Main regulator valve
48
Retainer clip
49
Retainer plug
50
Converter limit spring
51
Converter limit valve
52
Plate
53
Solenoid regulator valve spring
54
Solenoid regulator valve
55
Manual valve
56
Retainer clip
57
Retainer plug
58
Rear servo control valve spring
59
Rear servo control valve
60
Retainer clip
61
Retainer plug
62
RS ISA select valve spring
63
RS ISA select valve
64
Retainer clip
65
Retainer plug
66
Forward engagement control valve spring
67
Forward engagement control valve
68
Plate
69
Overdrive servo control spring
70
Overdrive servo control valve
71
Clip retainer
72
Converter clutch modulator control sleeve
73
Converter clutch modulator control valve
74
Converter clutch modulator valve
75
Converter clutch modulator control spring
76
Separator plate
77
Lubrication check ball
78
Shuttle valve ball
79
Lower control valve body
80
Bolt
