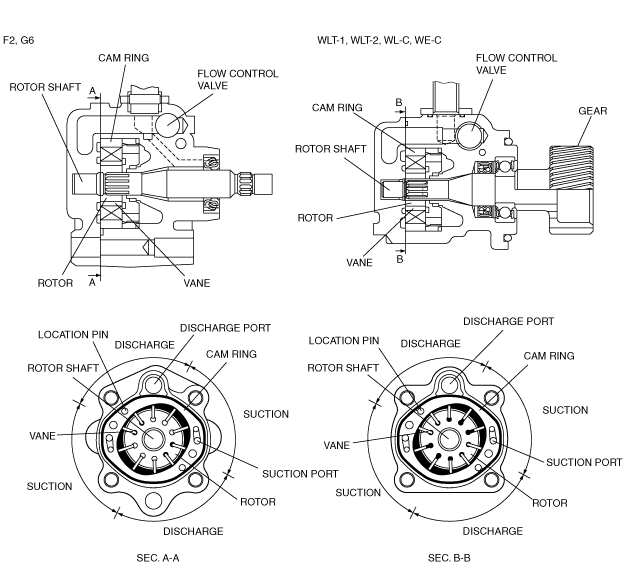

POWER STEERING OIL PUMP CONSTRUCTION


id061400100500

•  The oil pump is driven through the crankshaft (timing gear), idle gear, and vacuum pump gear. As a result, a lowering of performance due to belt slippage or breakage has been eliminated.
•  A flow control valve which adjusts the amount of oil sent to the steering gear has been designed in the oil pump to control hydraulic pressure fluctuation according to engine speed.
arnffn00000046
