BLOWER UNIT CONSTRUCTION/OPERATION


id071100101600

•  The blower unit consists of a blower motor, resistor, blower harness, blower case.

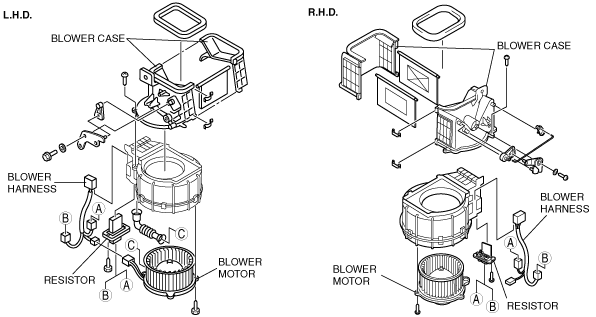

Construction

arnffn00000014

Operation

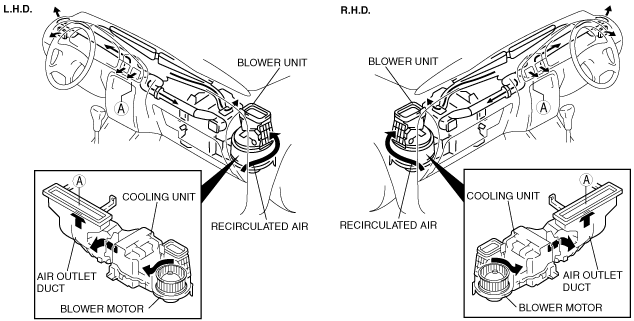

•  The blower unit blows recirculated air into the passenger compartment.
absggn00000342
