BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600

1.  Disassemble in the order indicated in the table.

Caution

•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

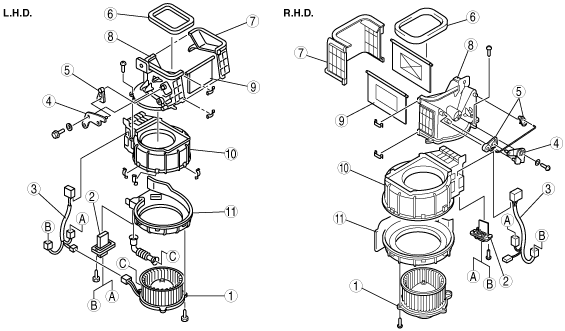

arnffw00000010

1	Blower motor
2	Resistor
3	Blower wiring harness
4	Air intake link
5	Air intake crank
6	Polyurethane protector
7	Blower case (1)
8	Blower case (2)
9	Air intake door
10	Blower case (3)
11	Blower case (4)

2.  Assemble in the reverse order of disassembly.
