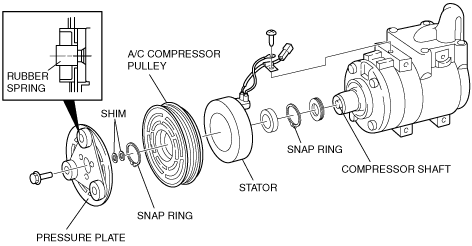

•  A magnetic clutch drives the compressor shaft.

•  When voltage is applied to the stator, the magnetic force locks the pressure plate and the pulley together as one unit. As a result the compressor shaft then turns with the pulley.

•  When voltage is removed from the stator, the pressure plate returns from the pulley by the rubber spring force. As a result the the compressor shaft does not turn.
