RESISTOR REMOVAL/INSTALLATION

id074000800700

1.   Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

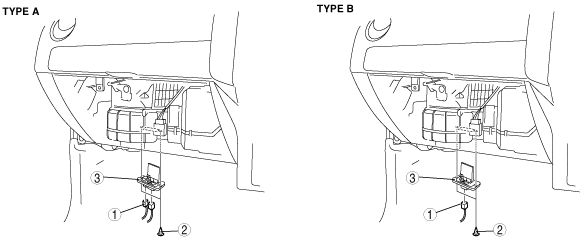

absggw00002405

1	Resistor connector
2	Screw
3	Resistor
