CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY
id074000802000
Without Heater
1. Disassemble in the order indicated in the table.
R.H.D.
absggw00002291
|
|
1
|
Panel
|
|
2
|
Airflow mode wire
|
|
3
|
Air intake wire
|
|
4
|
A/C amplifier
|
|
5
|
Fan switch
|
|
6
|
Climate control unit harness
|
|
7
|
Illumination bulb
|
|
8
|
Body
|
L.H.D.

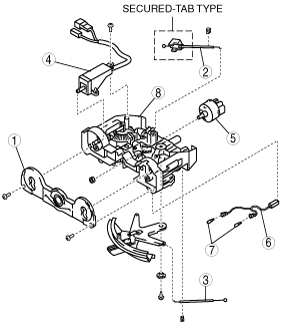

absggw00002292
|
|
1
|
Panel
|
|
2
|
Airflow mode wire
|
|
3
|
Air intake wire
|
|
4
|
A/C amplifier
|
|
5
|
Fan switch
|
|
6
|
Climate control unit harness
|
|
7
|
Illumination bulb
|
|
8
|
Body
|
2. Assemble in the reverse order of disassembly.
With Heater
1. Disassemble in the order indicated in the table.
R.H.D.

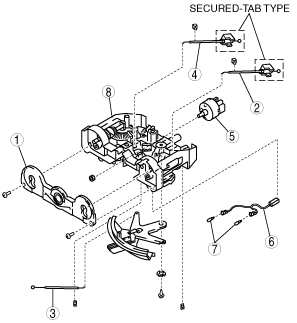

absggw00002293
|
|
1
|
Panel
|
|
2
|
Airflow mode wire
|
|
3
|
Air intake wire
|
|
4
|
Air mix wire
|
|
5
|
Fan switch
|
|
6
|
Climate control unit harness
|
|
7
|
Illumination bulb
|
|
8
|
Body
|
L.H.D.

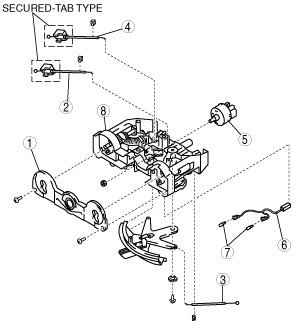

absggw00002294
|
|
1
|
Panel
|
|
2
|
Airflow mode wire
|
|
3
|
Air intake wire
|
|
4
|
Air mix wire
|
|
5
|
Fan switch
|
|
6
|
Climate control unit harness
|
|
7
|
Illumination bulb
|
|
8
|
Body
|
2. Assemble in the reverse order of disassembly.
