CLIMATE CONTROL UNIT WIRE ADJUSTMENT

id074000802100

Air Intake Wire

1.  Set the REC/FRESH lever at REC.

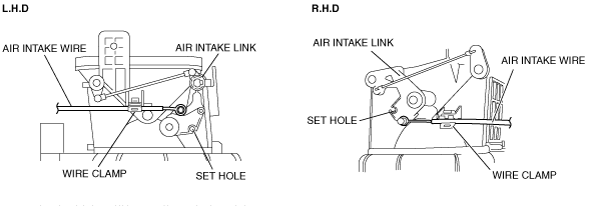

2.  Set the air intake link to REC in the direction of the arrow and insert a screwdriver into the set hole.

arnffw00000876

3.  Connect the air intake wire to the air intake link.

4.  Clamp the air intake wire to wire clamp.

5.  Verify that the REC/FRESH lever moves its full stroke.

Air Mix Wire

1.  Set the temperature control dial at MAX COLD.

2.  Set the air mix link to MAX COLD in the direction of the arrow and insert a screwdriver into the set hole.

Clip type

absggw00002295

Secured-tab type

absggw00002296

3.  Connect the air mix wire to the air mix link.

4.  Clamp the air mix wire to wire clamp.

5.  Verify that the temperature control dial moves its full stroke.

Airflow Mode Wire

1.  Set the airflow mode control dial at DEFROSTER.

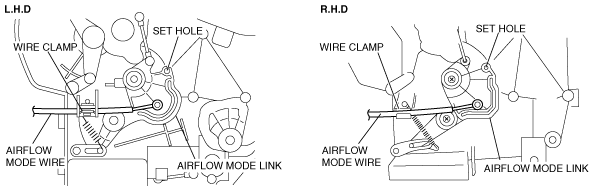

2.  Set the airflow mode link to DEFROSTER in the direction of the arrow and insert a screwdriver into the set hole.

Clip type

arnffw00000877

Secured-tab type

absggw00002297

3.  Connect the airflow mode wire to the airflow mode link.

4.  Clamp the airflow mode wire to wire clamp.

5.  Verify that the airflow mode control dial moves its full stroke.
