SIDE AIR BAG MODULE CONSTRUCTION/OPERATION

id081000100500

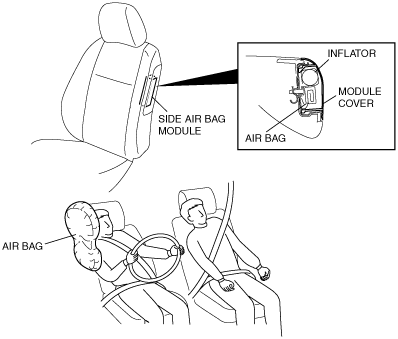

Construction

• Side air bag modules are installed on the outboard sides of the seat backs.

• The side air bag module is composed of an inflator, module cover and air bag.

• When an air bag deploys, the side air bag module cover is spread apart by the generation of argon gas from the inflator, inflating the air bag.

dcf810ztb006

Operation

Air bag module deployment operation

• Refer to the SAS control module, Air Bag Module and Pre-tensioner Seat Belt Deployment Operation. (See SAS CONTROL MODULE CONSTRUCTION/OPERATION.)

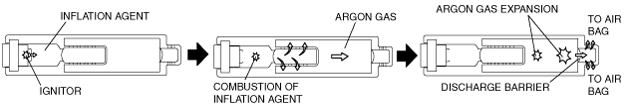

Inflator operation

1. The igniter built into the inflator begins to build up heat when the operation (deployment) signal is sent from the SAS control module. The inflation agent is ignited by the build up of heat in the igniter.

2. The argon gas expands due to the heat of the ignited inflation agent.

3. The expanding argon gas breaks the discharge barrier, is cooled and filtered by the filter, and then injected into the air bag.

epu810zt3006
