SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]

id0902f6803800

Note

•  The supplier can vary with the module. When asking the supplier (service center) for repair or replacement, identify the supplier and fill in the Audio Repair Order Form with the following procedures.

Identification Using the Label or Inscribed Lettering

1.  Remove the audio unit.

2.  Verify the supplier by referring to the label attached to each unit.

Identification Using the On-board Diagnostic Test Mode.

1.  Start the on-board diagnostic test mode.

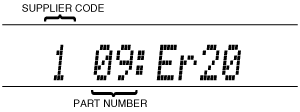

2.  Identify the device and supplier codes by referring to the information display.

chu0902wm02

Note

•  If no DTC is stored, no codes will be displayed.

Supplier code	Supplier name
1	SANYO Automedia
2	Panasonic
3	Clarion
4	Pioneer

Part number	Part name
03	CD player
05	CD changer (external)
06	CD changer (upper module)
07	MD player (lower module)
09	Base unit
10	MP3 applicable CD player system
21	Center panel
22	MP3 applicable CD changer (upper module)
