FRONT BUMPER DISASSEMBLY/ASSEMBLY

id091000800400

1. Remove the front fog light. (Vehicles with front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

2. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION.)

3. Disassemble in the order indicated in the table.

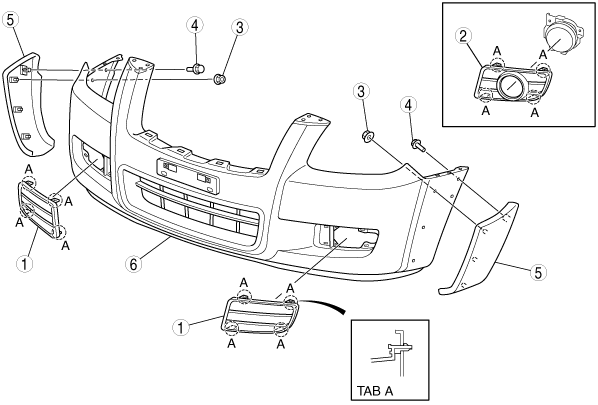

dbg910zwb011

1

Front hole cover (Vehicles without front fog lights)

2

Front fog light cover (Vehicles with front fog lights)

3

Nut A

4

Bolt

5

Over fender lower

6

Front bumper fascia

4. Assemble in the reverse order of disassembly.

1	Front hole cover (Vehicles without front fog lights)
2	Front fog light cover (Vehicles with front fog lights)
3	Nut A
4	Bolt
5	Over fender lower
6	Front bumper fascia
