FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800600

1.  Disconnect the negative battery cable.

2.  Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

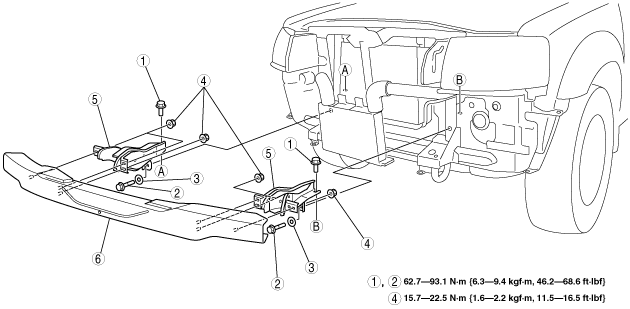

dcf910zwb014

1	Bolt A
2	Bolt B
3	Washer
4	Nut
5	Front bumper stay
6	Rear bumper reinforcement

5.  Install in the reverse order of removal.
