REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

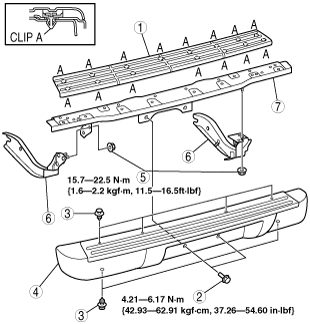

1.  Disassemble in the order indicated in the table.

dcf910zwb013

1	Rear bumper step
2	Bolt
3	Fastener
4	Rear bumper fascia
5	Nut
6	Rear bumper stay
7	Rear bumper reinforcement

2.  Assemble in the reverse order of disassembly.
