REAR ACCESS PANEL REMOVAL/INSTALLATION

id091000802900

1.  Disconnect the negative battery cable.

2.  Remove the rear access panel trim. (See REAR ACCESS PANEL TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

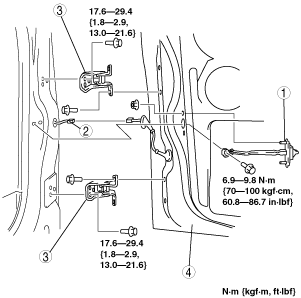

abr7714w004

1	Checker
2	Connector
3	Rear access panel hinge
4	Rear access panel

4.  Install in the reverse order of removal.
